99 0405 00 03 | binder

Plug, 3 pole, solder connection, screw locking, straight, 99 0405 00 03

Order No.: 67F302
EAN: 4099889702484
MPN:
99 0405 00 03
Series: 712

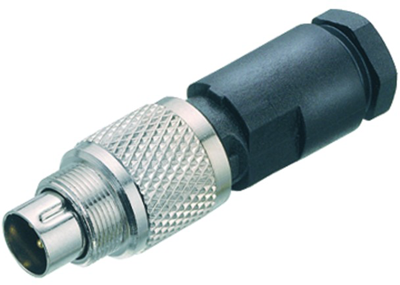

99 0405 00 03 binder Other Circular Connectors Image 1

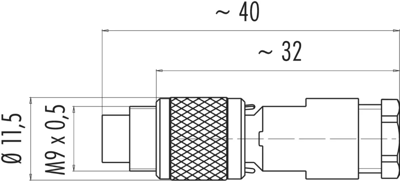

99 0405 00 03 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
8.6156 € *
Available: 122 pcs.
Next delivery: 100 pcs. on 2025-08-29
Total Price:
8.62 € *
Price list
Quantity
Price per unit*
1 pcs.
8.6156 €
10 pcs.
8.0087 €
50 pcs.
7.3661 €
100 pcs.
6.6997 €
*incl. VAT plus shipping costs
Subject to prior sale

Subminiature circular connector, type Binder 712.

With screw lock and solder terminals for simple assembly; Female contacts: copper tin. Male contacts:copper zinc. Contact finish: gold-plated. Wiring cross-section: max. 0.25 mm². Contact carrier:male/female: PBT/PA 66 to UL 94 V-0. Cable housing: PA 66 to UL 94 HB. Flanged housing: copper zinc.Cable outlet: 3.5 to 5.0 mm. Degree of protection housing: (IEC 60529): IP 67. Degree of soiling: 1. Rated voltage: 125 VAC. Test surge voltage: 1750 VAC. Rated current: (at 40 °C): 4.0 A. Contact resistance:max. 3.0 mohm. Insulation resistance: at least 10 Gohm. Mechanical useful life: at least 500 insertion cycles. Operating temperatures: - 40 to +85 °C.

Cable plug connectors, straight, type 712.

Type: 99-0405-00-03, 3-pole

Technical specifications
Filter Property Value
Contact connection solder connection
Additional parts equipped
Pin number 3 pole
contact surface gold-plated
Assembly cable assembly
Orientation straight
Version plug
Type of locking screw locking
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
RoHS conform Yes
