99 0402 75 02 | binder
Angle coupling, 2 pole, solder connection, screw locking, angled, 99 0402 75 02
Unit Price (€ / pc.)
24.8948 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
24.89 € *
Price list
Quantity
Price per unit*
1 pcs.
24.8948 €
10 pcs.
23.4073 €
50 pcs.
22.0031 €
100 pcs.
20.6822 €
*incl. VAT plus shipping costs
Subject to prior sale

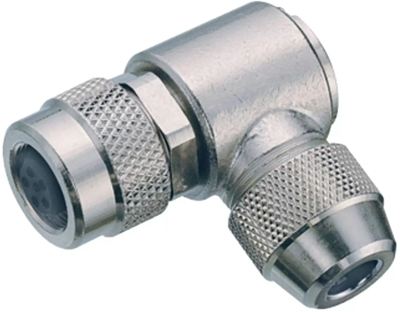

Female angled connector, 99 0402 75 02, binder
M9 IP67 Female angled connector, Contacts: 2, 3.5-5.0 mm, shieldable, solder, IP67.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 2 pole | |
| Cable cross-section | 0.25 mm² | |
| Version | angle coupling | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Cable diameter | 3.5 to 5 mm | |
| Orientation | angled | |
| Type of locking | screw locking | |
| Contact connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
