99 0218 210 07 | binder
Angle coupling, 6 pole + PE, screw connection, screw locking, angled, 99 0218 210 07
Unit Price (€ / pc.)
24.3474 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
24.35 € *
Price list
Quantity
Price per unit*
1 pcs.
24.3474 €
10 pcs.
22.8837 €
50 pcs.
21.5033 €
100 pcs.
20.2181 €
*incl. VAT plus shipping costs
**Subject to prior sale

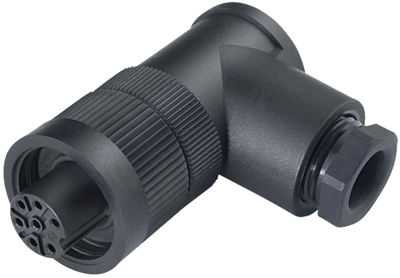

Female angled connector, 99 0218 210 07, binder
RD24 Female angled connector, Contacts: 6+PE, 8.0-10.0 mm, unshielded, screw clamp, IP67, PG 11.
Technical specifications
| Cable diameter | 8 to 10 mm | |
| Type of locking | screw locking | |
| contact surface | silver-plated | |
| Assembly | cable assembly | |
| Contact connection | screw connection | |
| Cable cross-section | 1.5 mm² | |
| Pin number | 6 pole + PE | |
| Version | angle coupling | |
| Additional parts | equipped | |
| Orientation | angled |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
