99 0218 00 07 | binder

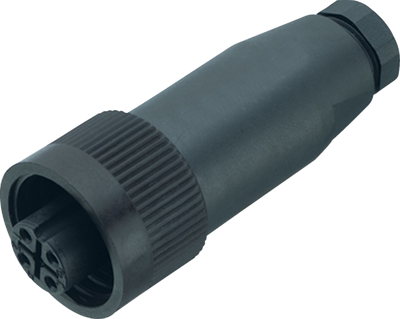

Jack, 6 pole + PE, screw connection, screw locking, straight, 99 0218 00 07

Order No.: 66P3209
EAN: 4099879097019
MPN:
99 0218 00 07
Series: 692
99 0218 00 07 binder Other Circular Connectors
Image may differ
Unit Price (€ / pc.)
22.8956 € *
Available: 31 pcs.
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
22.90 € *
Price list
Quantity
Price per unit*
1 pcs.
22.8956 €
10 pcs.
20.1586 €
50 pcs.
18.7782 €
150 pcs.
17.9452 €
500 pcs.
17.0408 €
*incl. VAT plus shipping costs
Subject to prior sale

Female cable connector, 99-0218-00-07, Franz Binder

RD24 Female connector, poles 6+PE, 6.0-8.0 mm, unshielded, screw clamp, IP67, PG 9

Technical specifications
Cable diameter 6 to 8 mm
Type of locking screw locking
contact surface silver-plated
Assembly cable assembly
Contact connection screw connection
Cable cross-section 1.5 mm²
Pin number 6 pole + PE
Version jack
Shell Material PBT
Orientation straight
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
