99 0217 70 07 | binder
Angle plug, 6 pole + PE, screw connection, screw locking, angled, 99 0217 70 07
Unit Price (€ / pc.)
28.7623 € *
Available: 6 pcs.
Total Price:
28.76 € *
Price list
Quantity
Price per unit*
1 pcs.
28.7623 €
10 pcs.
25.3351 €
50 pcs.
23.5739 €
150 pcs.
22.5624 €
500 pcs.
21.4081 €
*incl. VAT plus shipping costs
Subject to prior sale

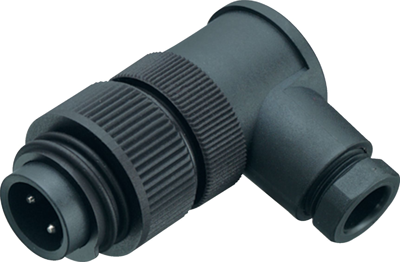

Male angled connector, 99-0217-70-07, Franz Binder
RD24 Male connector, poles 6+PE, 6.0-8.0 mm, unshielded, screw clamp, IP67, PG 9
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | screw connection | |
| contact surface | silver-plated | |
| Assembly | cable assembly | |
| Shell Material | PBT | |
| Cable diameter | 6 to 8 mm | |
| Orientation | angled | |
| Pin number | 6 pole + PE | |
| Version | angle plug | |
| Type of locking | screw locking | |
| Cable cross-section | 1.5 mm² |
Download
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
