99 0217 210 07 | binder

Angle plug, 6 pole + PE, screw connection, screw locking, angled, 99 0217 210 07

Order No.: 70P0863
EAN: 4099891700355
MPN:
99 0217 210 07
Series: 692
99 0217 210 07 binder Other Circular Connectors Image 1
99 0217 210 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
22.3363 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
22.34 € *
Price list
Quantity
Price per unit*
1 pcs.
22.3363 €
10 pcs.
21.0035 €
50 pcs.
19.7302 €
100 pcs.
18.5402 €
*incl. VAT plus shipping costs
Subject to prior sale

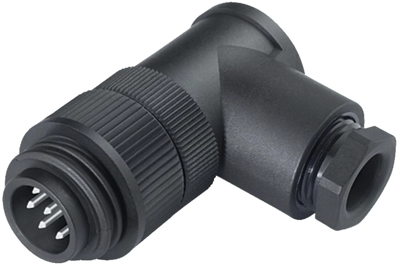

Male angled connector, 99 0217 210 07, binder

RD24 Male angled connector, Contacts: 6+PE, 8.0-10.0 mm, unshielded, screw clamp, IP67, PG 11.

Technical specifications
Cable diameter 8 to 10 mm
Type of locking screw locking
contact surface silver-plated
Assembly cable assembly
Contact connection screw connection
Cable cross-section 1.5 mm²
Pin number 6 pole + PE
Version angle plug
Additional parts equipped
Orientation angled
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
