99 0217 160 07 | binder

Plug, 6 pole + PE, screw connection, screw locking, straight, 99 0217 160 07

Order No.: 66P3203
EAN: 4099889700466
MPN:
99 0217 160 07
Series: 692

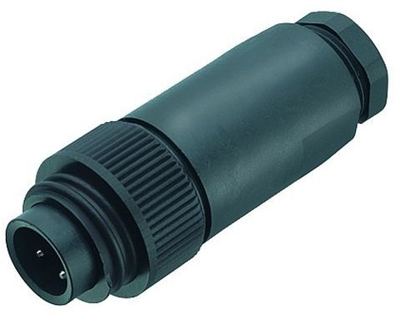

99 0217 160 07 binder Other Circular Connectors Image 1

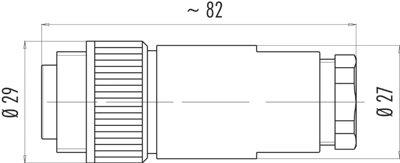

99 0217 160 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
15.8984 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
15.90 € *
Price list
Quantity
Price per unit*
1 pcs.
15.8984 €
10 pcs.
14.7798 €
50 pcs.
13.7445 €
100 pcs.
12.7687 €
*incl. VAT plus shipping costs
Subject to prior sale

Power connector, 99-0217-160-07, BINDER

RD24 Male cable connector, Contacts: 6+PE, 12.0-14.0 mm, unshielded, screw clamp, IP67, PG 16.

Features

  • Contact material: CuZn
  • Degree of protection: IP67
  • Pollution degree: 3
  • Overvoltage category: III
Technical specifications
Type of locking screw locking
contact surface silver-plated
Assembly cable assembly
Contact connection screw connection
Pin number 6 pole + PE
Version plug
Orientation straight
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
