99 0217 00 07 | binder

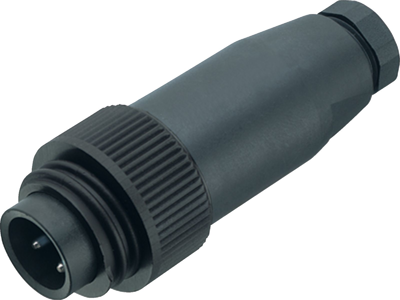

Plug, 6 pole + PE, screw connection, screw locking, straight, 99 0217 00 07
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
20.1348 € *
Available: 10 pcs.
Available in 10 days: 50 pcs. - if ordered today
Total Price:
20.13 € *
Price list
Quantity
Price per unit*
1 pcs.
20.1348 €
10 pcs.
17.7191 €
50 pcs.
16.5053 €
150 pcs.
15.7913 €
500 pcs.
14.9821 €
*incl. VAT plus shipping costs
Subject to prior sale
Male cable connector, 99-0217-00-07, Franz Binder
RD24 Male connector, poles 6+PE, 6.0-8.0 mm, unshielded, screw clamp, IP67, PG 9
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| Cable cross-section | 1.5 mm² | |
| Pin number | 6 pole + PE | |
| Orientation | straight | |
| Contact connection | screw connection | |
| Type of locking | screw locking | |
| Cable diameter | 6 to 8 mm | |
| Assembly | cable assembly | |
| contact surface | silver-plated | |
| Shell Material | PBT |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
