99 0213 215 07 | binder

Angle plug, 6 pole + PE, solder connection, screw locking, angled, 99 0213 215 07

Order No.: 70P0856
EAN: 4099891700287
MPN:
99 0213 215 07
Series: 692

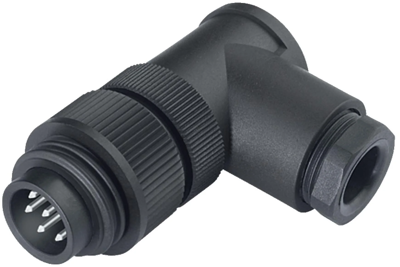

99 0213 215 07 binder Other Circular Connectors Image 1
99 0213 215 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
21.1344 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
21.13 € *
Price list
Quantity
Price per unit*
1 pcs.
21.1344 €
10 pcs.
19.8611 €
50 pcs.
18.6711 €
100 pcs.
17.5525 €
*incl. VAT plus shipping costs
Subject to prior sale

Male angled connector, 99 0213 215 07, binder

RD24 Male angled connector, Contacts: 6+PE, 10.0-12.0 mm, unshielded, solder, IP67, PG 13.5.

Technical specifications
Cable diameter 10 to 12 mm
Type of locking screw locking
contact surface silver-plated
Assembly cable assembly
Contact connection solder connection
Cable cross-section 0.75 mm²
Pin number 6 pole + PE
Version angle plug
Additional parts equipped
Orientation angled
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
