99 0210 70 04 | binder
Angle coupling, 3 pole + PE, screw connection, screw locking, angled, 99 0210 70 04
Unit Price (€ / pc.)
16.4696 € *
Available: 0 pcs.
Available in 5 Days: 50 pcs.
Leadtime: On Request **
Total Price:
16.47 € *
Price list
Quantity
Price per unit*
1 pcs.
16.4696 €
10 pcs.
15.3153 €
50 pcs.
14.0896 €
100 pcs.
12.8163 €
*incl. VAT plus shipping costs
**Subject to prior sale

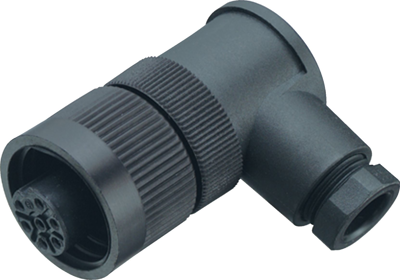

Female angled connector, 99-0210-70-04, Franz Binder
RD24 Female connector, poles 3+PE, 6.0-8.0 mm, unshielded, screw clamp, IP67, PG 9
Technical specifications
| Version | Winkelkupplung | |
| Shell Material | PBT | |
| Cable diameter | 6 bis 8 mm | |
| Contact connection | Schraubanschluss | |
| contact surface | versilbert | |
| Cable cross-section | 2,5 mm² | |
| Assembly | Kabelmontage | |
| Orientation | abgewinkelt | |
| Pin number | 3-polig + PE | |
| Type of locking | Schraubverriegelung |
Download
Logistics
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
