99 0209 160 04 | binder

Plug, 3 pole + PE, screw connection, screw locking, straight, 99 0209 160 04

Order No.: 70P0848
EAN: 4099891700201
MPN:
99 0209 160 04
Series: 692

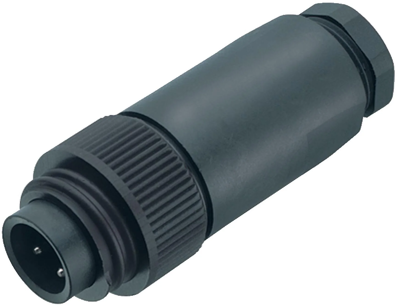

99 0209 160 04 binder Other Circular Connectors Image 1
99 0209 160 04 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
18.1594 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
18.16 € *
Price list
Quantity
Price per unit*
1 pcs.
18.1594 €
10 pcs.
16.9099 €
50 pcs.
15.7199 €
100 pcs.
14.6132 €
*incl. VAT plus shipping costs
Subject to prior sale

Male cable connector, 99 0209 160 04, binder

RD24 Male cable connector, Contacts: 3+PE, 12.0-14.0 mm, unshielded, screw clamp, IP67, PG 16.

Technical specifications
Filter Property Value
Contact connection screw connection
Cable diameter 12 to 14 mm
Orientation straight
Assembly cable assembly
Additional parts equipped
Version plug
Pin number 3 pole + PE
Type of locking screw locking
contact surface silver-plated
Cable cross-section 2.5 mm²
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
