99 0209 110 04 | binder

Plug, 3 pole + PE, screw connection, screw locking, straight, 99 0209 110 04

Order No.: 70P0847
EAN: 4099891700195
MPN:
99 0209 110 04
Series: 692

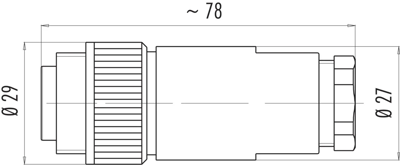

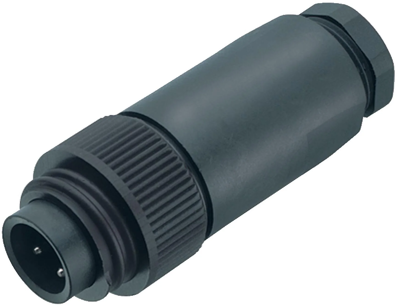

99 0209 110 04 binder Other Circular Connectors Image 1
99 0209 110 04 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
17.6239 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
17.62 € *
Price list
Quantity
Price per unit*
1 pcs.
17.6239 €
10 pcs.
16.3863 €
50 pcs.
15.2439 €
100 pcs.
14.1848 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male cable connector, 99 0209 110 04, binder

RD24 Male cable connector, Contacts: 3+PE, 8.0-10.0 mm, unshielded, screw clamp, IP67, PG 11.

Technical specifications
Cable diameter 8 to 10 mm
Type of locking screw locking
contact surface silver-plated
Assembly cable assembly
Contact connection screw connection
Cable cross-section 2.5 mm²
Pin number 3 pole + PE
Version plug
Additional parts equipped
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
