99 0209 00 04 | binder

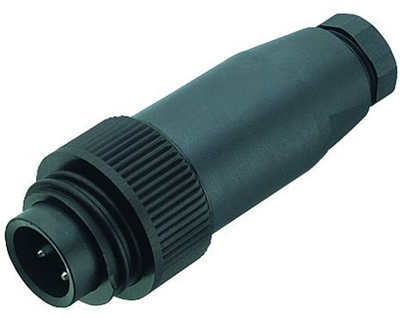

Plug, 3 pole + PE, screw connection, screw locking, straight, 99 0209 00 04
Unit Price (€ / pc.)
11.8524 € *
Available: 35 pcs.
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
11.85 € *
Price list
Quantity
Price per unit*
1 pcs.
11.8524 €
10 pcs.
10.6743 €
50 pcs.
10.0079 €
100 pcs.
9.4129 €
*incl. VAT plus shipping costs
Subject to prior sale
Power connector, 99-0209-00-04, BINDER
RD24 Male cable connector, Contacts: 3+PE, 6.0-9.0 mm, unshielded, screw clamp, IP67, PG 9.
Features
- Contact material: CuZn
- Degree of protection: IP67
- Pollution degree: 3
- Overvoltage category: III
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 3 pole + PE | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Assembly | cable assembly | |
| Contact connection | screw connection | |
| contact surface | silver-plated | |
| Version | plug |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
