99 0202 70 07 | binder

Angle coupling, 6 pole + PE, crimp connection, screw locking, angled, 99 0202 70 07

Order No.: 70P0846
EAN: 4099891700188
MPN:
99 0202 70 07
Series: 692

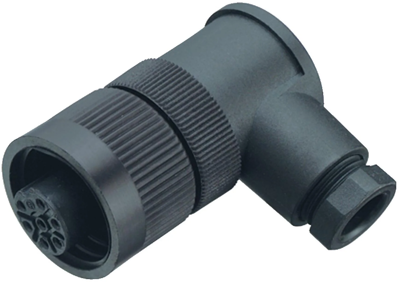

99 0202 70 07 binder Other Circular Connectors Image 1
99 0202 70 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
13.0305 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
13.03 € *
Price list
Quantity
Price per unit*
1 pcs.
13.0305 €
10 pcs.
12.1261 €
50 pcs.
11.2693 €
100 pcs.
10.1507 €
*incl. VAT plus shipping costs
Subject to prior sale

Female angled connector, 99 0202 70 07, binder

RD24 Female angled connector, Contacts: 6+PE, 6.0-8.0 mm, unshielded, crimping, IP67, PG 9.

Technical specifications
Cable diameter 6 to 8 mm
Type of locking screw locking
contact surface silver-plated
Assembly cable assembly
Contact connection crimp connection
Pin number 6 pole + PE
Version angle coupling
Additional parts unequipped
Orientation angled
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
