99 0202 210 07 | binder
Angle coupling, 6 pole + PE, crimp connection, screw locking, angled, 99 0202 210 07
Unit Price (€ / pc.)
14.1729 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
14.17 € *
Price list
Quantity
Price per unit*
1 pcs.
14.1729 €
10 pcs.
13.1733 €
50 pcs.
12.2570 €
100 pcs.
11.0313 €
*incl. VAT plus shipping costs
Subject to prior sale

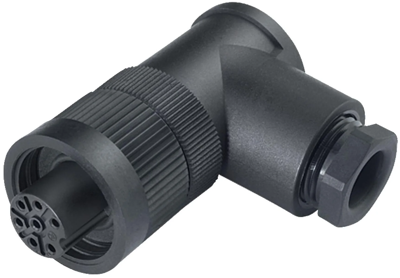

Female angled connector, 99 0202 210 07, binder
RD24 Female angled connector, Contacts: 6+PE, 8.0-10.0 mm, unshielded, crimping, IP67, PG 11.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | crimp connection | |
| contact surface | silver-plated | |
| Assembly | cable assembly | |
| Additional parts | unequipped | |
| Cable diameter | 8 to 10 mm | |
| Orientation | angled | |
| Pin number | 6 pole + PE | |
| Version | angle coupling | |
| Type of locking | screw locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
