99 0201 160 07 | binder

Plug, 6 pole + PE, crimp connection, screw locking, straight, 99 0201 160 07

Order No.: 70P0836
EAN: 4099891700089
MPN:
99 0201 160 07
Series: 692

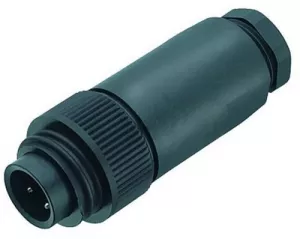

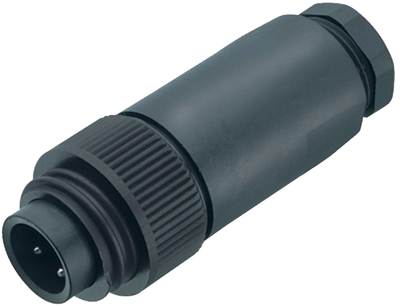

99 0201 160 07 binder Other Circular Connectors Image 1
99 0201 160 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
10.5553 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
10.56 € *
Price list
Quantity
Price per unit*
1 pcs.
10.5553 €
10 pcs.
9.5081 €
50 pcs.
8.7346 €
100 pcs.
7.6874 €
*incl. VAT plus shipping costs
Subject to prior sale

Male cable connector, 99 0201 160 07, binder

RD24 Male cable connector, Contacts: 6+PE, 12.0-14.0 mm, unshielded, crimping, IP67, PG 16.

Technical specifications
Cable diameter 12 to 14 mm
Type of locking screw locking
Assembly cable assembly
Contact connection crimp connection
Pin number 6 pole + PE
Version plug
Additional parts unequipped
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
