99 0162 10 14 | binder

Angle coupling, 14 pole, solder connection, screw locking, angled, 99 0162 10 14

Order No.: 70P0817
EAN: 4099891699932
MPN:
99 0162 10 14
Series: 682

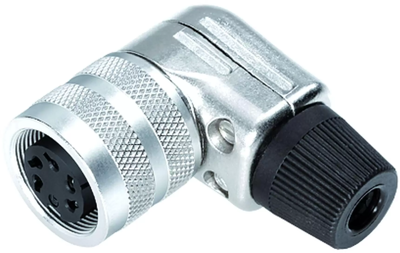

99 0162 10 14 binder Other Circular Connectors Image 1

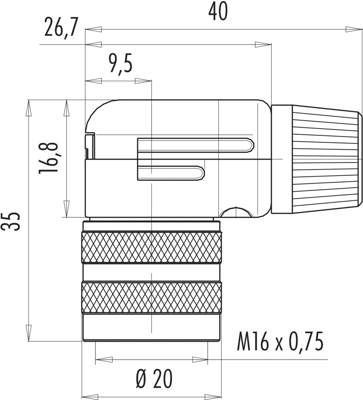

99 0162 10 14 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
24.9186 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
24.92 € *
Price list
Quantity
Price per unit*
1 pcs.
24.9186 €
10 pcs.
23.4311 €
50 pcs.
22.0150 €
100 pcs.
20.7060 €
*incl. VAT plus shipping costs
**Subject to prior sale

Female angled connector, 99 0162 10 14, binder

M16 IP40 Female angled connector, Contacts: 14, 4.0-6.0 mm, shieldable, solder, IP40.

Technical specifications
Version angle coupling
Cable cross-section 0.25 mm²
Pin number 14 pole
Orientation angled
Contact connection solder connection
Type of locking screw locking
Cable diameter 4 to 6 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material zinc die casting
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
