99 0153 10 08 | binder

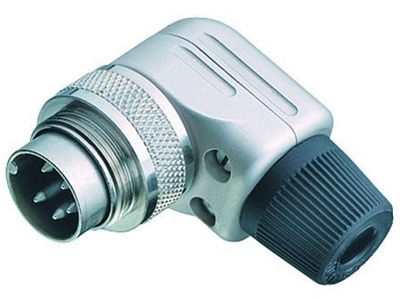

Angle plug, 8 pole, solder connection, screw locking, angled, 99 0153 10 08
Unit Price (€ / pc.)
14.7322 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
14.73 € *
Price list
Quantity
Price per unit*
1 pcs.
14.7322 €
10 pcs.
13.6850 €
50 pcs.
12.7211 €
100 pcs.
11.8405 €
*incl. VAT plus shipping costs
Subject to prior sale
Miniature connector, 99-0153-10-08, BINDER
M16 IP40 Male angled connector, Contacts: 8 DIN, 4.0-6.0 mm, shieldable, solder, IP40.
Features
- Contact material: CuZn
- Degree of protection: IP40
- Pollution degree: 1
- Overvoltage category: I
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | angled | |
| Type of locking | screw locking | |
| Assembly | cable assembly | |
| contact surface | silver-plated | |
| Version | angle plug | |
| Contact connection | solder connection | |
| Pin number | 8 pole |
Download
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
