99 0146 10 07 | binder

Angle coupling, 7 pole, solder connection, screw locking, angled, 99 0146 10 07

Order No.: 70P0813
EAN: 4099891699895
MPN:
99 0146 10 07
Series: 682

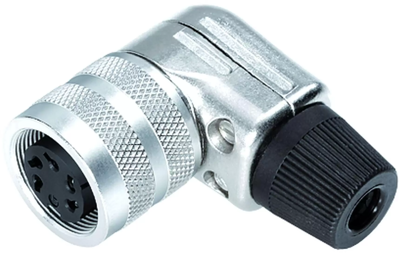

99 0146 10 07 binder Other Circular Connectors Image 1

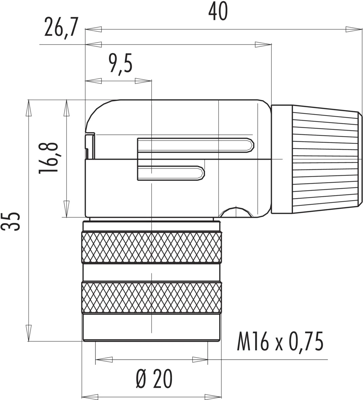

99 0146 10 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
16.8980 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
16.90 € *
Price list
Quantity
Price per unit*
1 pcs.
16.8980 €
10 pcs.
15.7199 €
50 pcs.
14.6132 €
100 pcs.
13.5898 €
*incl. VAT plus shipping costs
**Subject to prior sale

Female angled connector, 99 0146 10 07, binder

M16 IP40 Female angled connector, Contacts: 7, 4.0-6.0 mm, shieldable, solder, IP40.

Technical specifications
Version angle coupling
Cable cross-section 0.75 mm²
Pin number 7 pole
Orientation angled
Contact connection solder connection
Type of locking screw locking
Cable diameter 4 to 6 mm
Assembly cable assembly
Additional parts equipped
contact surface silver-plated
Shell Material zinc die casting
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
