99 0137 10 04 | binder

Angle plug, 4 pole, solder connection, screw locking, angled, 99 0137 10 04

Order No.: 70P0800
EAN: 4099891699765
MPN:
99 0137 10 04
Series: 682
99 0137 10 04 binder Other Circular Connectors Image 1
99 0137 10 04 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
14.8750 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
14.88 € *
Price list
Quantity
Price per unit*
1 pcs.
14.8750 €
10 pcs.
13.8278 €
50 pcs.
12.8520 €
100 pcs.
11.9595 €
*incl. VAT plus shipping costs
**Subject to prior sale

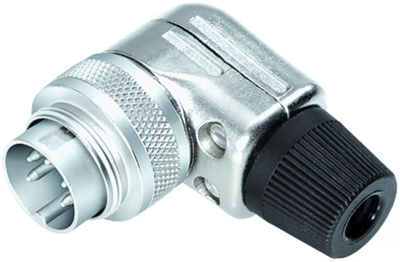

Male angled connector, 99 0137 10 04, binder

M16 IP40 Male angled connector, Contacts: 4, 4.0-6.0 mm, shieldable, solder, IP40.

Technical specifications
Version angle plug
Cable cross-section 0.75 mm²
Pin number 4 pole
Orientation angled
Contact connection solder connection
Type of locking screw locking
Cable diameter 4 to 6 mm
Assembly cable assembly
Additional parts equipped
contact surface silver-plated
Shell Material zinc die casting
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
