99 0075 100 03 | binder

Plug, 3 pole, solder connection, screw locking, straight, 99 0075 100 03

Order No.: 71F220
EAN: 4099889703535
MPN:
99 0075 100 03
Series: 711

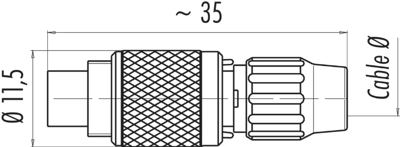

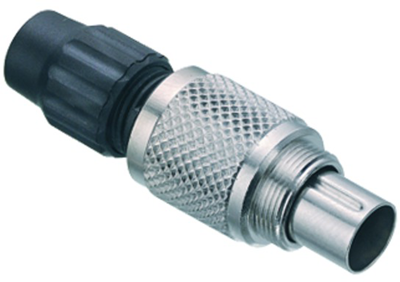

99 0075 100 03 binder Other Circular Connectors Image 1
99 0075 100 03 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
7.9373 € *
Available: 98 pcs.
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
7.94 € *
Price list
Quantity
Price per unit*
1 pcs.
7.9373 €
10 pcs.
6.9972 €
50 pcs.
6.5212 €
150 pcs.
6.2356 €
500 pcs.
5.9262 €
*incl. VAT plus shipping costs
Subject to prior sale

Subminiature circular connector, type Binder 711.

With screw lock. Compact and highly reliable; Female contacts: CuSn, male contacts:copper zinc. Contact finish: gold-plated. Cable cross-section: solder contacts. max. 0.25 mm². Contact carrier: plug/jack: PBT/PA 66 to UL 94 V-0. Cable housing: PA 66 to UL 94 V-0. Flanged housing: CuZn. Cable exit: 3.0 to 4.0 mm. Degree of protection housing: (IEC 60529): IP 40. Degree of soiling: 1, Rated voltage: 125 VAC. Test surge voltage: 1750 VAC. Rated current: (at 40 °C): 4.0 A. Contact resistance: max. 3.0 mohm. Insulation resistance: at least 10 Gohm. Mechanical useful life: at least 500 insertion cycles. Operating temperatures: - 40 to +85 °C.

Plugs, type 711.

Type: 99-0075-100-03, 3-pole

Technical specifications
Filter Property Value
Assembly cable assembly
Orientation straight
Type of locking screw locking
Contact connection solder connection
Pin number 3 pole
contact surface gold-plated
Version plug
Additional parts equipped
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Substance description Lead
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
