99 0072 100 02 | binder

Jack, 2 pole, solder connection, screw locking, straight, 99 0072 100 02

Order No.: 71F2205
EAN: 4099889703559
MPN:
99 0072 100 02
Series: 711

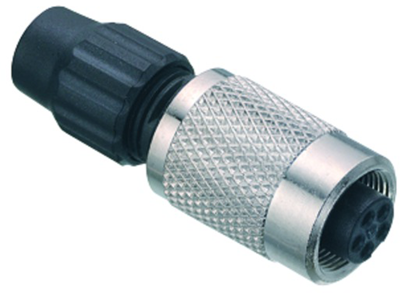

99 0072 100 02 binder Other Circular Connectors Image 1

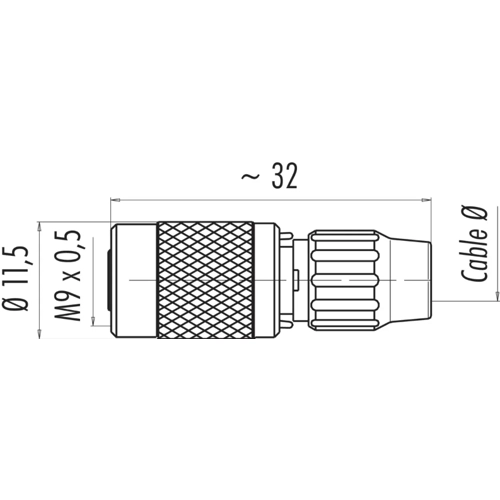

99 0072 100 02 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
10.2102 € *
Available: 99 pcs.
Available in 5 Days: 55 pcs. - if ordered today
Total Price:
10.21 € *
Price list
Quantity
Price per unit*
1 pcs.
10.2102 €
10 pcs.
8.9845 €
50 pcs.
8.3895 €
150 pcs.
7.9968 €
500 pcs.
7.5922 €
*incl. VAT plus shipping costs
Subject to prior sale

Subminiature circular connector, type Binder 711.

With screw lock. Compact and highly reliable; Female contacts: CuSn, male contacts:copper zinc. Contact finish: gold-plated. Cable cross-section: solder contacts. 2- to 5-pole: max. 0.25 mm², 7- and 8-pole max. 0.14 mm². Contact carrier: plug/jack: PBT/PA 66 to UL 94 V-0. Cable housing: PA 66 to UL 94 V-0. Flanged housing: CuZn. Cable exit: 3.0 to 4.0 mm. Degree of protection housing: (IEC 60529): IP 40. Degree of soiling: 1, Rated voltage: 125 VAC. Test surge voltage: 1750 VAC. Rated current: (at 40 °C): 2- and 3-pole 4.0 A, 4- and 5-pole 3.0 A, 7- and 8-pole: 1.0 A. Contact resistance: max. 3.0 mohm. Insulation resistance: at least 10 Gohm. Mechanical useful life: at least 500 insertion cycles. Operating temperatures: –40 to +85 °C.

Female cable connectors, type 711.

Type: 99-0072-100-02, 2-pole

Technical specifications
Filter Property Value
Additional parts equipped
Orientation straight
Pin number 2 pole
Assembly cable assembly
Type of locking screw locking
contact surface gold-plated
Contact connection solder connection
Version jack
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
