09 9789 71 05 | binder

Plug, 5 pole, solder cup, snap lock, straight, 09 9789 71 05

Order No.: 67F484
EAN: 4099889731514
MPN:
09 9789 71 05
Series: 719

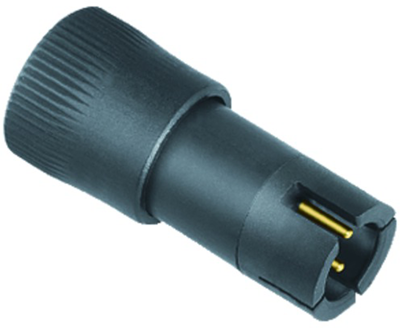

09 9789 71 05 binder Other Circular Connectors Image 1

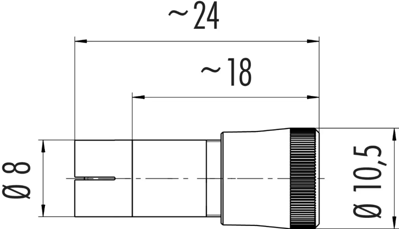

09 9789 71 05 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
7.2590 € *
Available: 50 pcs.
Total Price:
7.26 € *
Price list
Quantity
Price per unit*
1 pcs.
7.2590 €
10 pcs.
6.3784 €
50 pcs.
5.9500 €
150 pcs.
5.6882 €
500 pcs.
5.3907 €
*incl. VAT plus shipping costs
Subject to prior sale

SubMiniature circular connector, type Binder 719.

With snap lock, compact dimensions and high reliability; Contact finish: gold-plated. Cable termination: solder contacts, max. 0.25 mm². Contact carrier and housing: PA 12 (UL 94 HB). Cable outlet: 3.6 to 5.0 mm, with strain relief. Degree of protection in mated state (IEC 60529): IP 40. Rated voltage: 60 V. Test surge voltage: 910 V. Rated current: (at 40 °C): 3.0 A. Contact resistance: max. 3.0 mohm. Insulation resistance: min. 10 Gohm. Operating temperatures: –25 to +70 °C.

Cable plug connectors, type 719.

Type: 09-9789-71-05, 5-pole

Technical specifications
Filter Property Value
Version plug
Cable cross-section 0.25 mm²
Pin number 5 pole
Orientation straight
Contact connection solder cup
Type of locking snap lock
Cable diameter 3.6 to 5 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PA
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
