09 6504 000 08 | binder

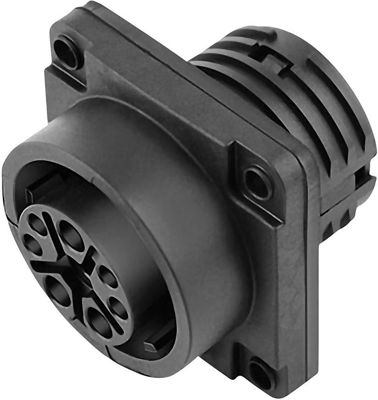

Panel socket, 4 + 3 polig + PE, crimp connection, bayonet locking, straight, 09 6504 000 08
Unit Price (€ / pc.)
12.6854 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
12.69 € *
Price list
Quantity
Price per unit*
1 pcs.
12.6854 €
10 pcs.
11.7929 €
50 pcs.
10.9837 €
100 pcs.
9.8770 €
*incl. VAT plus shipping costs
Subject to prior sale
Miniature connector, 09-6504-000-08, BINDER
Bayonet HEC Female panel mount connector, Contacts: 4+3+PE, unshielded, crimp.
Features
- Material of housing: PA
- Degree of protection: IP68
- Pollution degree: 3
- Overvoltage category: II
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | panel socket | |
| Pin number | 4 + 3 polig + PE | |
| Orientation | straight | |
| Contact connection | crimp connection | |
| Type of locking | bayonet locking | |
| Assembly | cable assembly | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
