09 4928 080 07 | binder
Panel socket, 7 pole, solder connection, push pull, straight, 09 4928 080 07
Unit Price (€ / pc.)
20.6108 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
20.61 € *
Price list
Quantity
Price per unit*
1 pcs.
20.6108 €
10 pcs.
19.3613 €
50 pcs.
18.1951 €
100 pcs.
17.1122 €
*incl. VAT plus shipping costs
Subject to prior sale

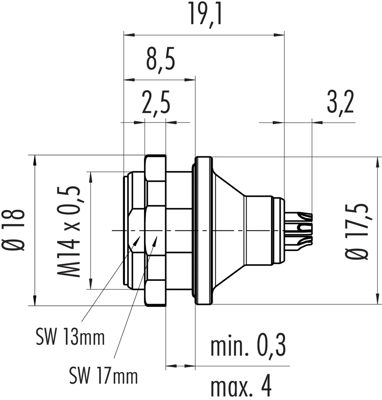

Female panel mount connector, 09 4928 080 07, binder
Push-Pull Female panel mount connector, Contacts: 7, unshielded, solder, IP67, front fastened.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Assembly | panel mounting | |
| Type of locking | push pull | |
| Pin number | 7 pole | |
| Additional parts | equipped | |
| Version | panel socket | |
| Cable cross-section | 0.14 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
