09 4844 00 19 | binder

Panel socket, 19 pole, solder cup, push pull, straight, 09 4844 00 19

Order No.: 65F614
EAN: 4099889726336
MPN:
09 4844 00 19
Series: 440

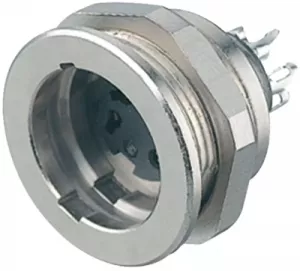

09 4844 00 19 binder Other Circular Connectors Image 1

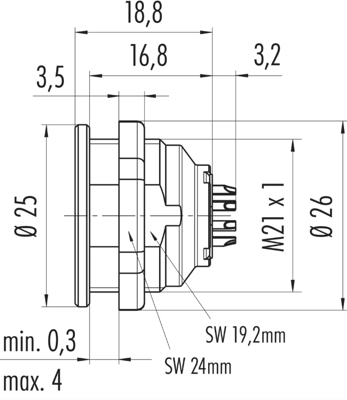

09 4844 00 19 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
30.2379 € *
Available: 20 pcs.
Total Price:
30.24 € *
Price list
Quantity
Price per unit*
1 pcs.
30.2379 €
5 pcs.
28.4291 €
15 pcs.
27.3343 €
50 pcs.
26.1324 €
150 pcs.
25.0495 €
*incl. VAT plus shipping costs
Subject to prior sale

Miniature circular connector with push-pull lock, type Binder 440.

With optional shielding and excellent EMC properties; Connection type: soldering. Terminal cross-section: max. 0.25 mm². Cable entry: 4.0 to 8.0 mm. Rated voltage: 60 V. Rated current (at +40 °C): 3,0 A. Contact resistance: < 3.0 mohm. Insulation resistance: > 10 Gohm. Degree of protection (IEC 60529): IP 67. Contact pin material: CuZn. Receptacle: CuSn. Finish: gold-plated. Cable connector housing: PA 66, glass fiber-reinforced. Flange connector: CuZn, nickel-plated. Operating temperatures: - 25 to +95 °C.

Female panel mount connector with shield spring.

Technical attributes (type, number of poles, rated voltage/rated current): 09-4844-00-19, 19-pole, 60 V/3.0 A

Technical specifications
Version panel socket
Cable cross-section 0.25 mm²
Pin number 19 pole
Orientation straight
Contact connection solder cup
Type of locking push pull
Cable diameter 4 to 8 mm
Assembly PCB mounting
Additional parts equipped
contact surface gold-plated
Shell Material PBT
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
