09 4835 00 12 | binder

Panel plug, 12 pole, solder cup, push pull, straight, 09 4835 00 12

Order No.: 65F552
EAN: 4099889726244
MPN:
09 4835 00 12
Series: 440

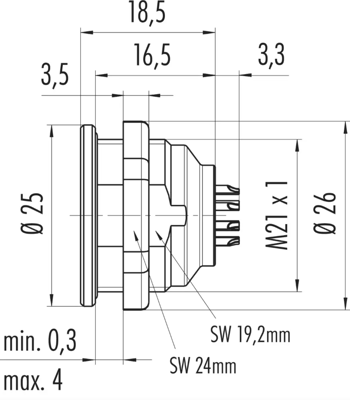

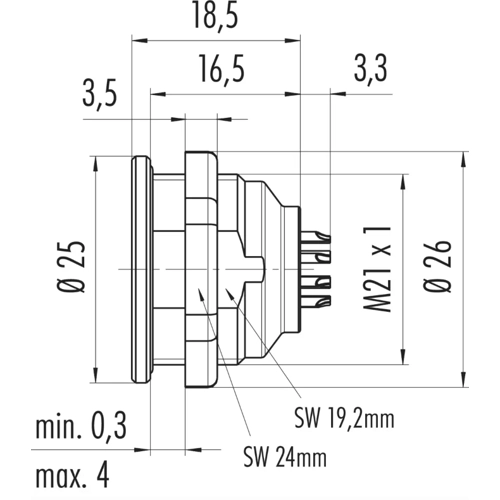

09 4835 00 12 binder Other Circular Connectors Image 1

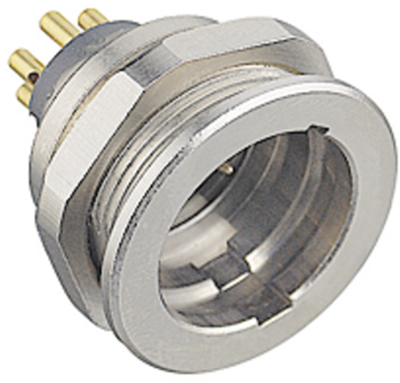

09 4835 00 12 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
28.7861 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
28.79 € *
Price list
Quantity
Price per unit*
1 pcs.
28.7861 €
10 pcs.
27.0487 €
25 pcs.
25.4303 €
50 pcs.
23.9071 €
*incl. VAT plus shipping costs
**Subject to prior sale

Miniature circular connector with push-pull lock, type Binder 440.

With optional shielding and excellent EMC properties; Connection type: soldering. Terminal cross-section: max. 0.25 mm². Cable entry: 4.0 to 8.0 mm. Rated voltage: 60 V. Rated current (at +40 °C): 3,0 A. Contact resistance: < 3.0 mohm. Insulation resistance: > 10 Gohm. Degree of protection (IEC 60529): IP 67. Contact pin material: CuZn. Receptacle: CuSn. Finish: gold-plated. Cable connector housing: PA 66, glass fiber-reinforced. Flange connector: CuZn, nickel-plated. Operating temperatures: - 25 to +95 °C.

Male panel mount connectors with shield spring.

Technical attributes (type, number of poles, rated voltage/rated current): 09-4835-00-12, 12-pole, 60 V/3.0 A

Technical specifications
Version panel plug
Cable cross-section 0.25 mm²
Pin number 12 pole
Orientation straight
Contact connection solder cup
Type of locking push pull
Cable diameter 4 to 8 mm
Assembly PCB mounting
Additional parts equipped
contact surface gold-plated
Shell Material PBT
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
