09 4820 00 06 | binder

Panel socket, 6 pole, solder cup, push pull, straight, 09 4820 00 06

Order No.: 65F606
EAN: 4099889726299
MPN:
09 4820 00 06
Series: 440

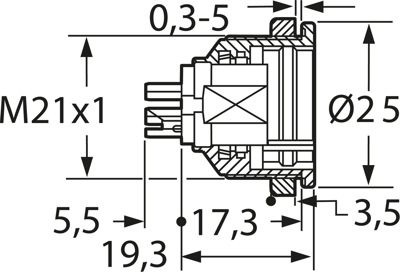

09 4820 00 06 binder Other Circular Connectors Image 1
09 4820 00 06 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
22.4077 € *
Available: 11 pcs.
Total Price:
22.41 € *
Price list
Quantity
Price per unit*
1 pcs.
22.4077 €
10 pcs.
21.0749 €
50 pcs.
19.8016 €
100 pcs.
18.6235 €
*incl. VAT plus shipping costs
Subject to prior sale

Miniature circular connector with push-pull lock, type Binder 440.

With optional shielding and excellent EMC properties; Connection type: soldering. Terminal cross-section: max. 0.75 mm². Cable entry: 4.0 to 8.0 mm. Rated voltage: 125 V. Rated current (at +40 °C): 5,0 A. Contact resistance: < 3.0 mohm. Insulation resistance: > 10 Gohm. Degree of protection (IEC 60529): IP 67. Contact pin material: CuZn. Receptacle: CuSn. Finish: gold-plated. Cable connector housing: PA 66, glass fiber-reinforced. Flange connector: CuZn, nickel-plated. Operating temperatures: - 25 to +95 °C.

Female panel mount connector with shield spring.

Technical attributes (type, number of poles, rated voltage/rated current): 09-4820-00-06, 6-pole DIN, 125 V/5.0 A

Technical specifications
Filter Property Value
Version panel socket
Cable cross-section 0.75 mm²
Pin number 6 pole
Orientation straight
Contact connection solder cup
Type of locking push pull
Cable diameter 4 to 8 mm
Assembly PCB mounting
Additional parts equipped
contact surface gold-plated
Shell Material PBT
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
