09 4816 00 05 | binder

Panel socket, 5 pole, solder cup, push pull, straight, 09 4816 00 05

Order No.: 65F604
EAN: 4099889726282
MPN:
09 4816 00 05
Series: 440

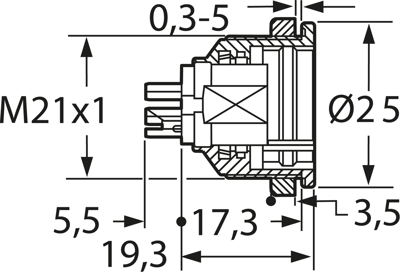

09 4816 00 05 binder Other Circular Connectors Image 1
09 4816 00 05 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
27.4176 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
27.42 € *
Price list
Quantity
Price per unit*
1 pcs.
27.4176 €
10 pcs.
24.1332 €
50 pcs.
22.4910 €
150 pcs.
21.5033 €
500 pcs.
20.3966 €
*incl. VAT plus shipping costs
Subject to prior sale

Miniature circular connector with push-pull lock, type Binder 440.

With optional shielding and excellent EMC properties; Connection type: soldering. Terminal cross-section: max. 0.75 mm². Cable entry: 4.0 to 8.0 mm. Rated voltage: 250 V. Rated current (at +40 °C): 6,0 A. Contact resistance: < 3.0 mohm. Insulation resistance: > 10 Gohm. Degree of protection (IEC 60529): IP 67. Contact pin material: CuZn. Receptacle: CuSn. Finish: gold-plated. Cable connector housing: PA 66, glass fiber-reinforced. Flange connector: CuZn, nickel-plated. Operating temperatures: - 25 to +95 °C.

Female panel mount connector with shield spring.

Technical attributes (type, number of poles, rated voltage/rated current): 09-4816-00-05, 5-pole, 250 V/6.0 A

Technical specifications
Version panel socket
Cable cross-section 0.75 mm²
Pin number 5 pole
Orientation straight
Contact connection solder cup
Type of locking push pull
Cable diameter 4 to 8 mm
Assembly PCB mounting
Additional parts equipped
contact surface gold-plated
Shell Material PBT
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
