09 4808 00 03 | binder

Panel socket, 3 pole, solder cup, push pull, straight, 09 4808 00 03

Order No.: 65F600
EAN: 4099889726268
MPN:
09 4808 00 03
Series: 440

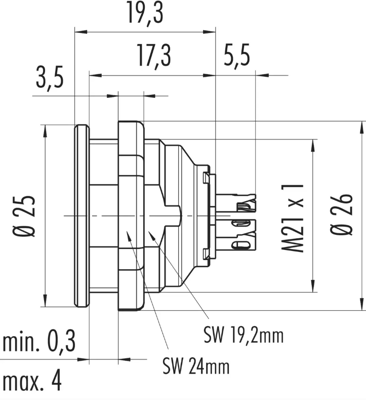

09 4808 00 03 binder Other Circular Connectors Image 1
09 4808 00 03 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
20.9797 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
20.98 € *
Price list
Quantity
Price per unit*
1 pcs.
20.9797 €
10 pcs.
18.4569 €
50 pcs.
17.1836 €
150 pcs.
16.4458 €
500 pcs.
15.6009 €
*incl. VAT plus shipping costs
Subject to prior sale

Miniature circular connector with push-pull lock, type Binder 440.

With optional shielding and excellent EMC properties; Connection type: soldering. Terminal cross-section: max. 0.75 mm². Cable entry: 4.0 to 8.0 mm. Rated voltage: 250 V. Rated current (at +40 °C): 7,0 A. Contact resistance: < 3.0 mohm. Insulation resistance: > 10 Gohm. Degree of protection (IEC 60529): IP 67. Contact pin material: CuZn. Receptacle: CuSn. Finish: gold-plated. Cable connector housing: PA 66, glass fiber-reinforced. Flange connector: CuZn, nickel-plated. Operating temperatures: - 25 to +95 °C.

Female panel mount connector with shield spring.

Technical attributes (type, number of poles, rated voltage/rated current): 09-4808-00-03, 3-pole DIN, 250 V/7.0 A

Technical specifications
Version panel socket
Cable cross-section 0.75 mm²
Pin number 3 pole
Orientation straight
Contact connection solder cup
Type of locking push pull
Cable diameter 4 to 8 mm
Assembly PCB mounting
Additional parts equipped
contact surface gold-plated
Shell Material PBT
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
