09 4228 00 07 | binder

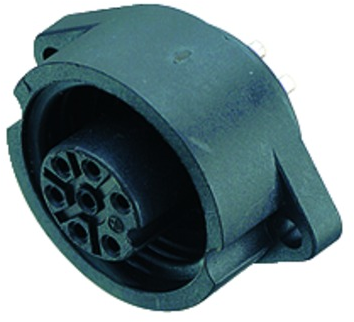

Panel socket, 6 pole + PE, solder cup, screw locking, straight, 09 4228 00 07
Unit Price (€ / pc.)
11.0075 € *
Available: 68 pcs.
Total Price:
11.01 € *
Price list
Quantity
Price per unit*
1 pcs.
11.0075 €
10 pcs.
9.6866 €
50 pcs.
9.0202 €
150 pcs.
8.6275 €
500 pcs.
8.1872 €
*incl. VAT plus shipping costs
Subject to prior sale
Connector for automation technology, type Binder 693.
Robust design; Female contact: copper tin. Contact finish: silver-plated. Contact carrier and housing: PBT in accordance with UL 94 V-0. Housing protection class: IP 67. Rated voltage: 250 V. Test voltage: 4800 V. Rated current (40 °C): 10 A. Contact resistance: max. 5.0 mohm. Insulation resistance: min. 10 Gohm. Operating temperatures: - 40 to +100 °C. Certifications: VDE, UL, SEV.
Female panel mount connector, with flange
type: 09-4228-00-07
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 6 pole + PE | |
| Shell Material | PBT | |
| Cable cross-section | 0.75 mm² | |
| Version | panel socket | |
| Assembly | PCB mounting | |
| Additional parts | equipped | |
| contact surface | silver-plated | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Contact connection | solder cup |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
