09 4227 00 07 | binder

Panel plug, 6 pole + PE, solder cup, screw locking, straight, 09 4227 00 07

Order No.: 67F9922
EAN: 4099889733280
MPN:
09 4227 00 07
Series: 693

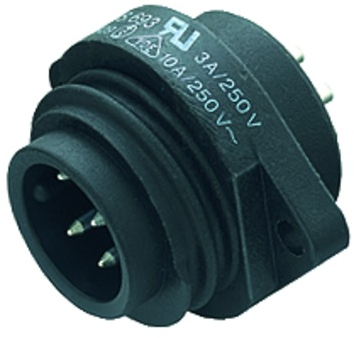

09 4227 00 07 binder Other Circular Connectors Image 1

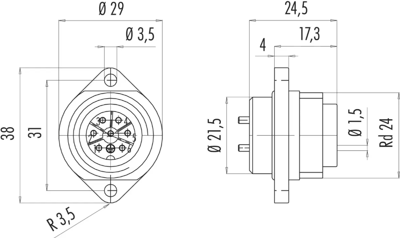

09 4227 00 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
6.4141 € *
Available: 110 pcs.
Total Price:
6.41 € *
Price list
Quantity
Price per unit*
1 pcs.
6.4141 €
10 pcs.
5.7715 €
50 pcs.
5.4145 €
100 pcs.
5.0932 €
*incl. VAT plus shipping costs
Subject to prior sale

Connector for automation technology, type Binder 693.

Robust design; Male contact: CuZn. Contact finish: silver-plated. Contact carrier and housing: PBT in accordance with UL 94 V-0. Housing protection class: IP 67. Rated voltage: 250 V. Test voltage: 4800 V. Rated current (40 °C): 10 A. Contact resistance: max. 5.0 mohm. Insulation resistance: min. 10 Gohm. Operating temperatures: - 40 to +100 °C. Certifications: VDE, UL, SEV.

Male panel mount connectors, with flange

type: 09-4227-00-07

Technical specifications
Filter Property Value
Contact connection solder cup
Shell Material PBT
Orientation straight
Assembly PCB mounting
Additional parts equipped
Version panel plug
Pin number 6 pole + PE
Type of locking screw locking
contact surface silver-plated
Cable cross-section 0.75 mm²
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
