09 4224 150 04 | binder

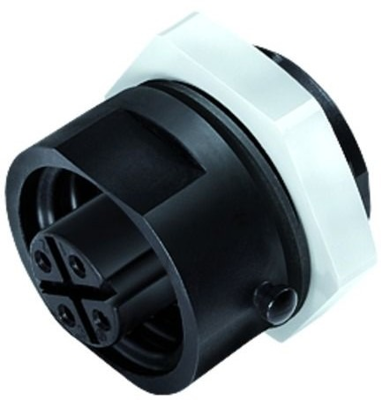

Panel socket, 3 pole + PE, screw connection, central screw, straight, 09 4224 150 04
Unit Price (€ / pc.)
11.4716 € *
Available: 12 pcs.
Total Price:
11.47 € *
Price list
Quantity
Price per unit*
1 pcs.
11.4716 €
10 pcs.
10.6624 €
50 pcs.
9.8056 €
100 pcs.
8.9250 €
*incl. VAT plus shipping costs
Subject to prior sale
Power connector, 09-4224-150-04, BINDER
RD24 Female panel mount connector, Contacts: 3+PE, unshielded, screw clamp, IP67, UL, ESTI+, VDE, central fixing.
Features
- Contact material: CuZn
- Pollution degree: 3
- Overvoltage category: II
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | screw connection | |
| contact surface | silver-plated | |
| Assembly | panel mounting | |
| Shell Material | PA | |
| Orientation | straight | |
| Pin number | 3 pole + PE | |
| Version | panel socket | |
| Type of locking | central screw | |
| Cable cross-section | 2.50 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
