09 4223 00 04 | binder

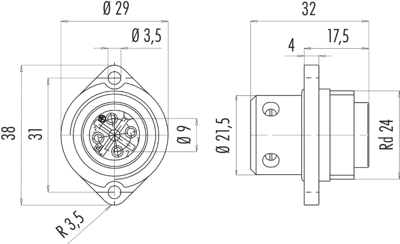

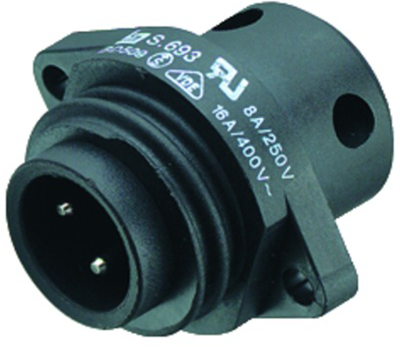

Panel plug, 3 pole + PE, screw connection, screw locking, straight, 09 4223 00 04
Unit Price (€ / pc.)
10.1626 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
10.16 € *
Price list
Quantity
Price per unit*
1 pcs.
10.1626 €
10 pcs.
8.9488 €
50 pcs.
8.3419 €
150 pcs.
7.9611 €
500 pcs.
7.5684 €
*incl. VAT plus shipping costs
Subject to prior sale
Connector for automation technology, type Binder 693.
Robust design with screw or solder terminals; Male contact: CuZn. Contact finish: silver-plated. Contact carrier and housing: PBT in accordance with UL 94 V-0. Housing protection class: IP 67. Rated voltage: 400 V. Test voltage: 7300 V. Rated current (40 °C): 16 A. Contact resistance: max. 5.0 mohm. Insulation resistance: min. 10 Gohm. Operating temperatures: - 40 to +100 °C. Certifications: VDE, UL, SEV.
Male panel mount connectors, with flange
type: 09-4223-00-04
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | screw connection | |
| contact surface | silver-plated | |
| Assembly | PCB mounting | |
| Shell Material | PBT | |
| Additional parts | equipped | |
| Orientation | straight | |
| Pin number | 3 pole + PE | |
| Version | panel plug | |
| Type of locking | screw locking | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
