09 4219 00 07 | binder

Panel plug, 6 pole + PE, screw connection, screw locking, straight, 09 4219 00 07

Order No.: 67F9923
EAN: 4099889733297
MPN:
09 4219 00 07
Series: 693

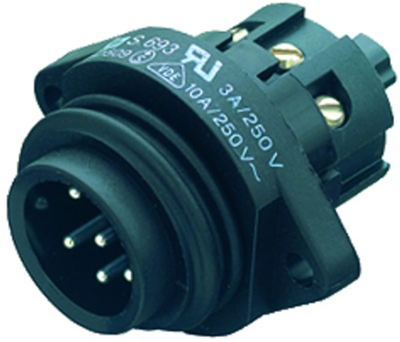

09 4219 00 07 binder Other Circular Connectors Image 1

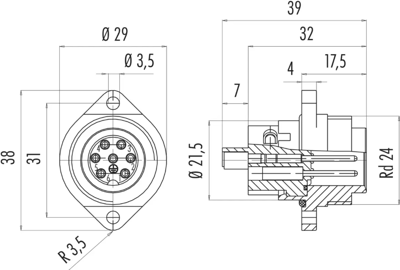

09 4219 00 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
11.6025 € *
Available: 12 pcs.
Next delivery: 100 pcs. on 2025-07-30
Total Price:
11.60 € *
Price list
Quantity
Price per unit*
1 pcs.
11.6025 €
10 pcs.
10.8052 €
50 pcs.
9.9365 €
100 pcs.
9.0440 €
*incl. VAT plus shipping costs
Subject to prior sale

Connector for automation technology, type Binder 693.

Robust design; Male contact: CuZn. Contact finish: silver-plated. Contact carrier and housing: PBT in accordance with UL 94 V-0. Housing protection class: IP 67. Rated voltage: 250 V. Test voltage: 4800 V. Rated current (40 °C): 10 A. Contact resistance: max. 5.0 mohm. Insulation resistance: min. 10 Gohm. Operating temperatures: - 40 to +100 °C. Certifications: VDE, UL, SEV.

Male panel mount connectors, with flange

type: 09-4219-00-07

Technical specifications
Filter Property Value
Assembly PCB mounting
Orientation straight
Additional parts equipped
Type of locking screw locking
Pin number 6 pole + PE
Shell Material PBT
Version panel plug
Cable cross-section 1.5 mm²
contact surface silver-plated
Contact connection screw connection
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Substance description Lead
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
