09 1584 00 07 | binder

Panel socket, 7 pole, solder connection, screw locking, straight, 09 1584 00 07

Order No.: 70P0735
EAN: 4099891699116
MPN:
09 1584 00 07
Series: 680

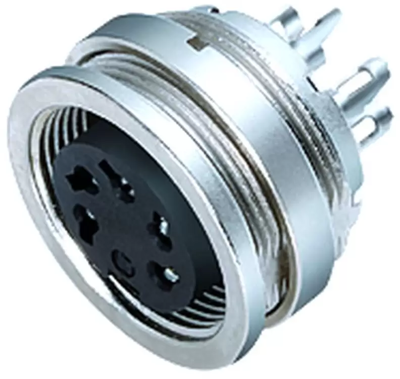

09 1584 00 07 binder Other Circular Connectors Image 1

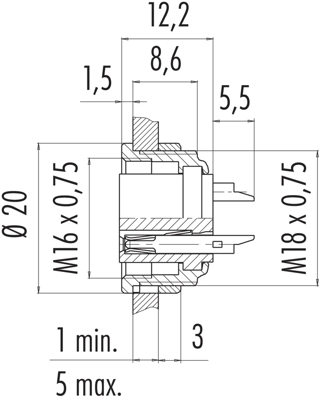

09 1584 00 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
9.9246 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
9.92 € *
Price list
Quantity
Price per unit*
1 pcs.
9.9246 €
10 pcs.
8.9250 €
50 pcs.
8.2229 €
100 pcs.
7.2352 €
*incl. VAT plus shipping costs
Subject to prior sale

Female panel mount connector, 09 1584 00 07, binder

M16 IP40 Female panel mount connector, Contacts: 7 DIN, unshielded, solder, IP40.

Technical specifications
Filter Property Value
Orientation straight
Version panel socket
Cable cross-section 0.75 mm²
contact surface silver-plated
Pin number 7 pole
Type of locking screw locking
Additional parts equipped
Shell Material zinc die casting
Contact connection solder connection
Assembly panel mounting
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
