09 1581 00 07 | binder
Plug, 7 pole, solder connection, screw locking, straight, 09 1581 00 07
Unit Price (€ / pc.)
8.9726 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
8.97 € *
Price list
Quantity
Price per unit*
1 pcs.
8.9726 €
10 pcs.
8.0682 €
50 pcs.
7.1162 €
100 pcs.
6.4022 €
*incl. VAT plus shipping costs
Subject to prior sale

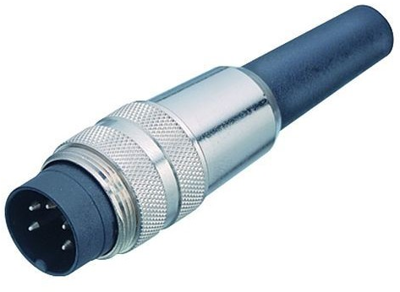

Sensor-actuator connector, 09-1581-00-07, BINDER

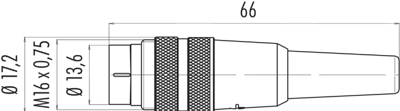

M16 IP40 Male cable connector, Contacts: 7 DIN, 3.0-6.0 mm, unshielded, solder, IP40.
Features
- Contact material: CuZn
- Pollution degree: 1
- Overvoltage category: I
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Type of locking | screw locking | |
| Assembly | cable assembly | |
| contact surface | silver-plated | |
| Version | plug | |
| Contact connection | solder connection | |
| Pin number | 7 pole |
Download
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
