09 0998 00 05 | binder

Panel socket, 5 pole, solder cup, bayonet locking, straight, 09 0998 00 05

Order No.: 67F4650
EAN: 4099889731460
MPN:
09 0998 00 05
Series: 710

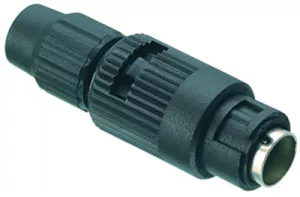

09 0998 00 05 binder Other Circular Connectors Image 1
09 0998 00 05 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
8.4847 € *
Next delivery: 100 pcs. on 2025-09-18
Total Price:
8.48 € *
Price list
Quantity
Price per unit*
1 pcs.
8.4847 €
10 pcs.
7.4613 €
100 pcs.
6.5450 €
250 pcs.
6.2951 €
1000 pcs.
5.8905 €
*incl. VAT plus shipping costs
Subject to prior sale

SubMiniature circular connector, type Binder 710.

With bayonet lock; Male contact: CuZn. Female contact: CuSn. Contact finish: gold-plated. Solder terminals: max. 0.25 mm². Female contact carrier and receptacle housing: PA 66 to UL 94 V-0. Male contact carrier: PBT to UL 94 V-0. Cable housing: PA 12 to UL 94 HB. Rated voltage: 125 VAC. Test surge voltage: 1750 V. Insulation resistance: 10 Gohm. Degree of protection: IP 40. Operating temperatures: - 40 to +85 °C. Insertion/removal cycles: min. 500.

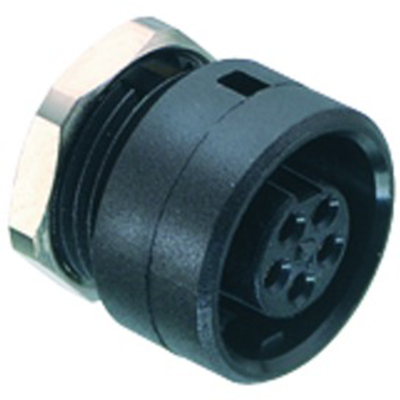

Female panel mount connector, type 710.

Technical attributes (type, number of poles, rated current (+40 °C), cable outlet): 09-0998-00-05, 5-pole, 3.0 A

Technical specifications
Filter Property Value
Pin number 5 pole
Shell Material PA
Cable cross-section 0.25 mm²
Type of locking bayonet locking
contact surface gold-plated
Orientation straight
Additional parts equipped
Contact connection solder cup
Version panel socket
Assembly PCB mounting
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
SVHC free No
