09 0977 00 03 | binder
Panel plug, 3 pole, solder connection, bayonet locking, straight, 09 0977 00 03
Unit Price (€ / pc.)
8.0444 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
8.04 € *
Price list
Quantity
Price per unit*
1 pcs.
8.0444 €
10 pcs.
7.2471 €
50 pcs.
6.3784 €
100 pcs.
5.7358 €
*incl. VAT plus shipping costs
Subject to prior sale

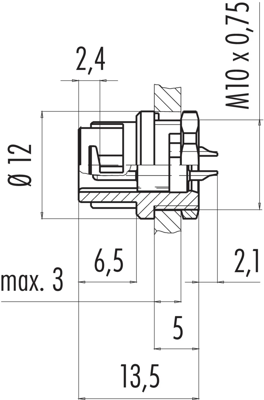

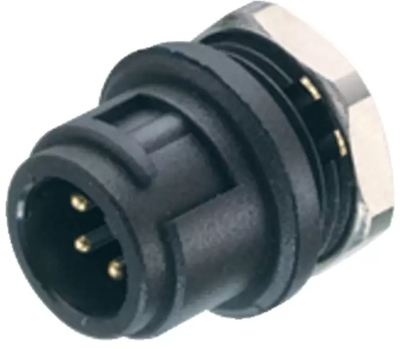

Male panel mount connector, 09 0977 00 03, binder
Bayonet Male panel mount connector, Contacts: 3, unshielded, solder, IP40.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Shell Material | PA | |
| Orientation | straight | |
| Assembly | panel mounting | |
| Type of locking | bayonet locking | |
| Pin number | 3 pole | |
| Additional parts | equipped | |
| Version | panel plug | |
| Cable cross-section | 0.25 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
