09 0762 000 05 | binder

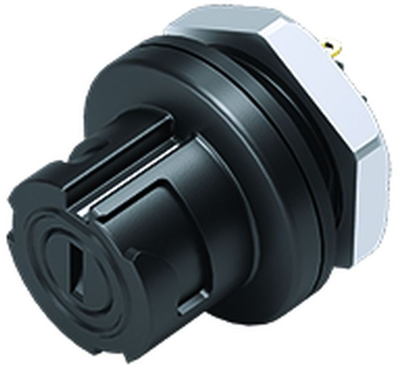

Panel socket, 5 pole, solder connection, bayonet locking, straight, 09 0762 000 05

Order No.: 70P2337
EAN: 4099891706180
MPN:
09 0762 000 05
Series: 670
09 0762 000 05 binder Other Circular Connectors Image 1
09 0762 000 05 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
13.5898 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
13.59 € *
Price list
Quantity
Price per unit*
1 pcs.
13.5898 €
10 pcs.
12.6378 €
50 pcs.
11.7453 €
100 pcs.
10.5672 €
*incl. VAT plus shipping costs
Subject to prior sale

Female panel mount connector, 09 0762 000 05, binder

Bayonet NCC Female panel mount connector, Contacts: 5, unshielded, solder, IP54 unplugged.

Technical specifications
Filter Property Value
Version panel socket
contact surface gold-plated
Contact connection solder connection
Shell Material PA
Type of locking bayonet locking
Additional parts equipped
Assembly panel mounting
Cable cross-section 0.25 mm²
Orientation straight
Pin number 5 pole
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
