09 0584 00 07 | binder

Panel socket, 7 pole, solder connection, screw locking, straight, 09 0584 00 07

Order No.: 70P1561
EAN: 4099891703745
MPN:
09 0584 00 07
Series: 723

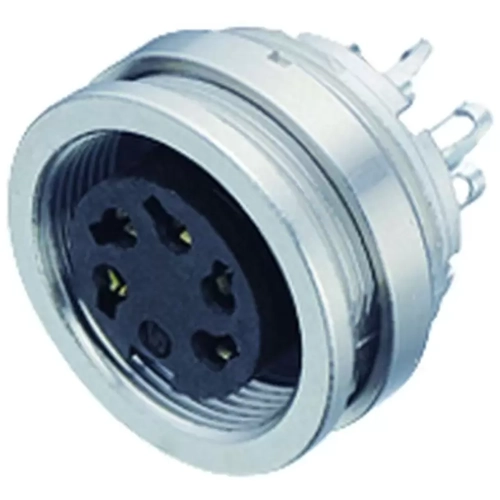

09 0584 00 07 binder Other Circular Connectors Image 1
09 0584 00 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
12.3046 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
12.30 € *
Price list
Quantity
Price per unit*
1 pcs.
12.3046 €
10 pcs.
11.4359 €
50 pcs.
10.6505 €
100 pcs.
9.5676 €
*incl. VAT plus shipping costs
Subject to prior sale

Female panel mount connector, 09 0584 00 07, binder

M16 IP67 Female panel mount connector, Contacts: 7 DIN, unshielded, solder, IP67, UL.

Technical specifications
Filter Property Value
Additional parts equipped
contact surface silver-plated
Orientation straight
Version panel socket
Contact connection solder connection
Type of locking screw locking
Assembly panel mounting
Shell Material zinc die casting
Cable cross-section 0.75 mm²
Pin number 7 pole
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
