09 0572 92 08 | binder

Jack, 8 pole, solder connection, screw locking, straight, 09 0572 92 08

Order No.: 70P0733
EAN: 4099891699093
MPN:
09 0572 92 08
Series: 680

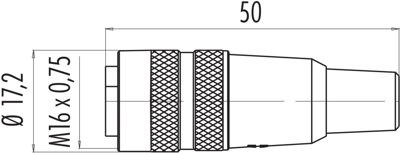

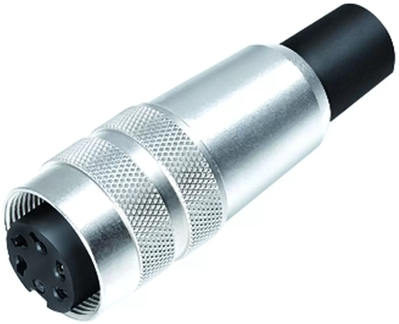

09 0572 92 08 binder Other Circular Connectors Image 1
09 0572 92 08 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
16.4220 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
16.42 € *
Price list
Quantity
Price per unit*
1 pcs.
16.4220 €
10 pcs.
15.2796 €
50 pcs.
14.1967 €
100 pcs.
13.2209 €
*incl. VAT plus shipping costs
Subject to prior sale

Female cable connector, 09 0572 92 08, binder

M16 IP40 Female cable connector, Contacts: 8 DIN, 6.0-8.0 mm, unshielded, solder, IP40.

Technical specifications
Version jack
Cable cross-section 0.75 mm²
Pin number 8 pole
Orientation straight
Contact connection solder connection
Type of locking screw locking
Cable diameter 6 to 8 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PA
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
