09 0507 80 16 | binder

Panel plug, 16 pole, solder connection, screw locking, straight, 09 0507 80 16

Order No.: 70P1554
EAN: 4099891703677
MPN:
09 0507 80 16
Series: 723

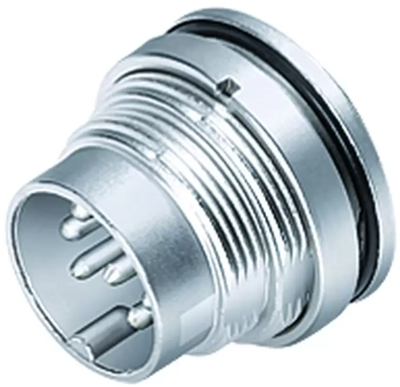

09 0507 80 16 binder Other Circular Connectors Image 1

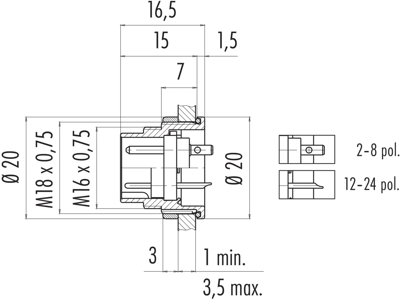

09 0507 80 16 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
20.0039 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
20.00 € *
Price list
Quantity
Price per unit*
1 pcs.
20.0039 €
10 pcs.
18.8020 €
50 pcs.
17.6715 €
100 pcs.
16.6005 €
*incl. VAT plus shipping costs
Subject to prior sale

Male panel mount connector, 09 0507 80 16, binder

M16 IP67 Male panel mount connector, Contacts: 16, unshielded, solder, IP67, UL, front fastened.

Technical specifications
Filter Property Value
Version panel plug
Orientation straight
Shell Material zinc die casting
Pin number 16 pole
Cable cross-section 0.25 mm²
Additional parts equipped
Contact connection solder connection
contact surface gold-plated
Assembly panel mounting
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
