09 0507 300 16 | binder

Panel plug, 16 pole, solder connection, screw locking, straight, 09 0507 300 16

Order No.: 70P1553
EAN: 4099891703660
MPN:
09 0507 300 16
Series: 723
09 0507 300 16 binder Other Circular Connectors Image 1
09 0507 300 16 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
20.3609 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
20.36 € *
Price list
Quantity
Price per unit*
1 pcs.
20.3609 €
10 pcs.
19.1352 €
50 pcs.
17.9928 €
100 pcs.
16.9218 €
*incl. VAT plus shipping costs
Subject to prior sale

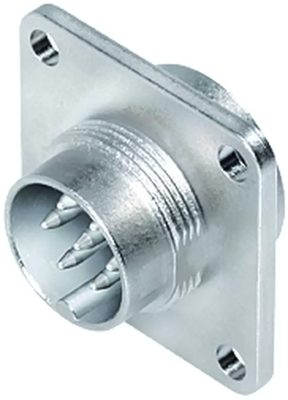

Square male panel mount connector, 09 0507 300 16, binder

M16 IP67 Square male panel mount connector, Contacts: 16, unshielded, solder, IP67, UL.

Technical specifications
Filter Property Value
Version panel plug
Orientation straight
Shell Material zinc die casting
Pin number 16 pole
Cable cross-section 0.25 mm²
Additional parts equipped
Contact connection solder connection
contact surface gold-plated
Assembly panel mounting
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
