09 0505 70 16 | binder

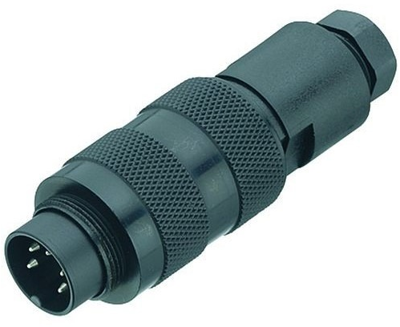

Plug, 16 pole, solder connection, screw locking, straight, 09 0505 70 16
Unit Price (€ / pc.)
26.7750 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
26.78 € *
Price list
Quantity
Price per unit*
1 pcs.
26.7750 €
10 pcs.
25.1804 €
25 pcs.
23.6691 €
50 pcs.
22.2530 €
*incl. VAT plus shipping costs
Subject to prior sale
Miniature connector, 09-0505-70-16, BINDER
M16 IP67 Male cable connector, Contacts: 16, 6.0-8.0 mm, unshielded, solder, IP67.
Features
- Contact material: CuZn
- Pollution degree: 1
- Overvoltage category: I
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| Cable cross-section | 0.25 mm² | |
| Pin number | 16 pole | |
| Orientation | straight | |
| Contact connection | solder connection | |
| Type of locking | screw locking | |
| Cable diameter | 6 to 8 mm | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Shell Material | PA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
