09 0498 00 24 | binder

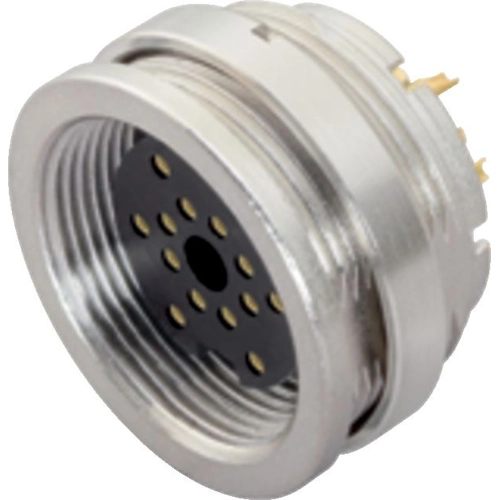

Name: Panel socket, 24 pole, solder connection, screw locking, straight, 09 0498 00 24
Brand: binder
SKU: 66P0971
Availability: InStock

Panel socket, 24 pole, solder connection, screw locking, straight, 09 0498 00 24

Order No.: 66P0971

EAN: 4099879086877

MPN:

09 0498 00 24

Series: 723

Image may differ

Key Specification:

Version panel socket

Cable cross-section 0.14 mm²

Pin number 24 pole

Orientation straight

Contact connection solder connection

Show variants: 5

Download Datasheet Technical specifications

Unit Price (€ / pc.)

30.2617 € *

Available: 17 pcs.

Available in 5 Days: 100 pcs. - if ordered today

Total Price:

30.26 € *

Price list

Quantity

Price per unit*

1 pcs.

30.2617 €

10 pcs.

29.0598 €

25 pcs.

26.3228 €

50 pcs.

23.9547 €

*incl. VAT plus shipping costs

Subject to prior sale

Description

Female panel mount connector, 09-0498-00-24, Franz Binder

M16 IP67 Female connector, poles 24, unshielded, solder, IP67, UL

Technical specifications

Filter	Property	Value
	Contact connection	solder connection
	contact surface	gold-plated
	Shell Material	zinc die casting
	Orientation	straight
	Assembly	panel mounting
	Type of locking	screw locking
	Pin number	24 pole
	Version	panel socket
	Cable cross-section	0.14 mm²
