09 0481 00 08 | binder

Panel plug, 8 pole, solder connection, screw locking, straight, 09 0481 00 08

Order No.: 71F237
EAN: 4099889703740
MPN:
09 0481 00 08
Series: 711

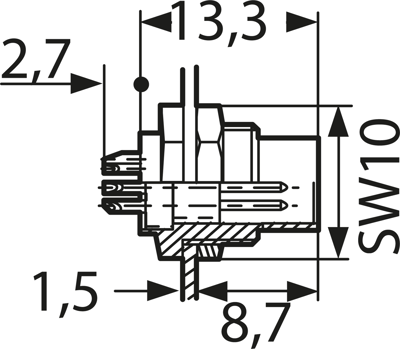

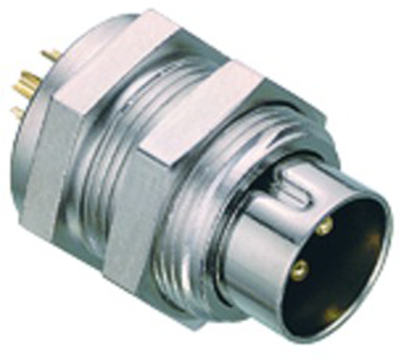

09 0481 00 08 binder Other Circular Connectors Image 1
09 0481 00 08 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
13.2090 € *
Available: 20 pcs.
Total Price:
13.21 € *
Price list
Quantity
Price per unit*
1 pcs.
13.2090 €
10 pcs.
11.6144 €
50 pcs.
10.8409 €
150 pcs.
10.3530 €
*incl. VAT plus shipping costs
Subject to prior sale

Subminiature circular connector, type Binder 711.

With screw lock. Compact and highly reliable; Female contacts: CuSn, male contacts:copper zinc. Contact finish: gold-plated. Cable cross-section: solder contacts. max. 0.14 mm². Contact carrier: plug/jack: PBT/PA 66 to UL 94 V-0. Cable housing: PA 66 to UL 94 V-0. Flanged housing: CuZn. Cable exit: 3.0 to 4.0 mm. Degree of protection housing: (IEC 60529): IP 40. Degree of soiling: 1, Rated voltage: 125 VAC. Test surge voltage: 1750 VAC. Rated current: (at 40 °C): 1.0 A. Contact resistance: max. 3.0 mohm. Insulation resistance: at least 10 Gohm. Mechanical useful life: at least 500 insertion cycles. Operating temperatures: - 40 to +85 °C.

Male panel mount connector, solder terminals, type 711.

Type: 09-0481-00-08, 8-pole

Technical specifications
Filter Property Value
Pin number 8 pole
Shell Material CuZn
Cable cross-section 0.14 mm²
Type of locking screw locking
contact surface gold-plated
Orientation straight
Additional parts equipped
Contact connection solder connection
Version panel plug
Assembly panel mounting
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
SVHC free No
