09 0477 00 07 | binder

Panel plug, 7 pole, solder connection, screw locking, straight, 09 0477 00 07

Order No.: 71F232
EAN: 4099889703702
MPN:
09 0477 00 07
Series: 711
09 0477 00 07 binder Other Circular Connectors

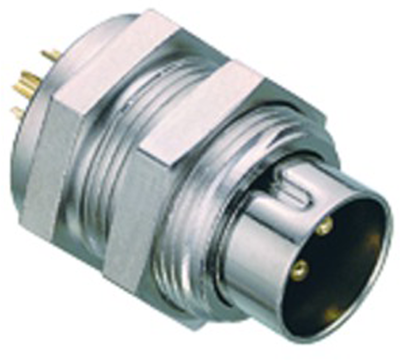

Image may differ
Unit Price (€ / pc.)
13.5779 € *
Available: 15 pcs.
Total Price:
13.58 € *
Price list
Quantity
Price per unit*
1 pcs.
13.5779 €
10 pcs.
11.9595 €
50 pcs.
11.1384 €
150 pcs.
10.6505 €
500 pcs.
10.1031 €
*incl. VAT plus shipping costs
Subject to prior sale

Subminiature circular connector, type Binder 711.

With screw lock. Compact and highly reliable; Female contacts: CuSn, male contacts:copper zinc. Contact finish: gold-plated. Cable cross-section: solder contacts. max. 0.14 mm². Contact carrier: plug/jack: PBT/PA 66 to UL 94 V-0. Cable housing: PA 66 to UL 94 V-0. Flanged housing: CuZn. Cable exit: 3.0 to 4.0 mm. Degree of protection housing: (IEC 60529): IP 40. Degree of soiling: 1, Rated voltage: 125 VAC. Test surge voltage: 1750 VAC. Rated current: (at 40 °C): 1.0 A. Contact resistance: max. 3.0 mohm. Insulation resistance: at least 10 Gohm. Mechanical useful life: at least 500 insertion cycles. Operating temperatures: - 40 to +85 °C.

Male panel mount connector, solder terminals, type 711.

Type: 09-0477-00-07, 7-pole

Technical specifications
Filter Property Value
Assembly panel mounting
Orientation straight
Additional parts equipped
Type of locking screw locking
Pin number 7 pole
Shell Material CuZn
Version panel plug
Cable cross-section 0.14 mm²
contact surface gold-plated
Contact connection solder connection
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Substance description Lead
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
