09 0467 00 12 | binder

Plug, 12 pole, solder cup, bayonet locking, straight, 09 0467 00 12

Order No.: 70F8999
EAN: 4099889740622
MPN:
09 0467 00 12
Series: 690

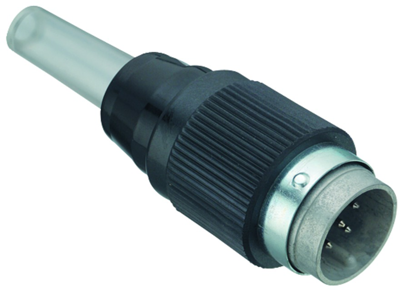

09 0467 00 12 binder Other Circular Connectors Image 1

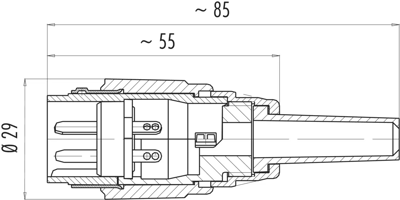

09 0467 00 12 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
31.9277 € *
Available: 8 pcs.
Leadtime: On Request **
Total Price:
31.93 € *
Price list
Quantity
Price per unit*
1 pcs.
31.9277 €
5 pcs.
30.0237 €
15 pcs.
28.8694 €
50 pcs.
27.5842 €
150 pcs.
26.4418 €
*incl. VAT plus shipping costs
**Subject to prior sale

Industrial connector, type Binder 690.

Robust design with bayonet lock.; Contacts: CuZn. Contact finish: tinned (male contacts). Cable connection: solder contacts, 0.75 mm². Contact block: PET UL 94 V-0. Housing:anodized aluminum alloy. Degree of protection (IEC 60529): IP 40. Cable outlet: 5.0 to 8.0 mm. Test surge voltage: 1750 V. Contact resistance: max. 8.0 mohm. Insulation resistance: min. 10 Gohm. Operating temperatures: - 40 to +85 °C.

Cable plug connectors with bayonet lock, type 690.

Technical attributes (type, number of poles, rated voltage/rated current (+40 °C)): 09-0467-00-12, 12-pole, 125 V/5.0 A

Technical specifications
Version plug
Cable cross-section 0.75 mm²
Pin number 12 pole
Orientation straight
Contact connection solder cup
Type of locking bayonet locking
Cable diameter 5 to 8 mm
Assembly cable assembly
Additional parts equipped
contact surface CuSnZn
Shell Material aluminum alloy
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
