09 0464 80 19 | binder
Panel socket, 19 pole, solder connection, screw locking, straight, 09 0464 80 19
Unit Price (€ / pc.)
38.1276 € *
Available: 4 pcs.
Available in 5 Days: 50 pcs. - if ordered today
Total Price:
38.13 € *
Price list
Quantity
Price per unit*
1 pcs.
38.1276 €
5 pcs.
35.8309 €
15 pcs.
34.4743 €
50 pcs.
32.9273 €
150 pcs.
31.5707 €
*incl. VAT plus shipping costs
Subject to prior sale

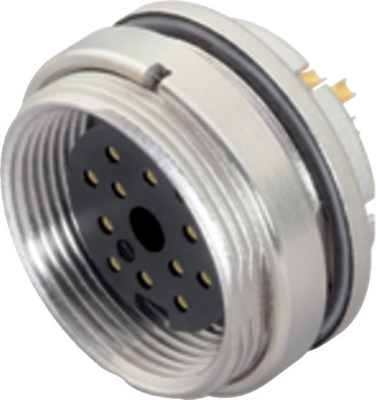

Female panel mount connector, 09-0464-80-19, Franz Binder
M16 IP67 Female connector, poles 19, unshielded, solder, IP67, UL, front fastened
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Type of locking | screw locking | |
| Cable cross-section | 0.25 mm² | |
| Assembly | panel mounting | |
| contact surface | gold-plated | |
| Version | panel socket | |
| Contact connection | solder connection | |
| Pin number | 19 pole | |
| Shell Material | zinc die casting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
